    ZR-96 DNA Clean & Concentrator-5 (Deep Well)


    Zymo Research's 100% Satisfaction Guarantee

    Satisfaction Guaranteed

    Read The Zymo Research Promise

    Cat # Name Size Price Quantity
    D4024 ZR-96 DNA Clean & Concentrator-5 4 x 96 Preps €523,60
    - +
    D4023 ZR-96 DNA Clean & Concentrator-5 2 x 96 Preps €274,50
    - +

    Highlights

    • Clean and concentrate up to 5 μg DNA (per well) with ≥ 10 μl elution volume in as little as 15 minutes with 0 μl wash residue carryover.
    • Deep-well filtration plate designs allow DNA to be eluted at high concentrations into minimal volumes of water or TE buffer.
    Description & Documents Specifications Components

    Documents

    Product Description

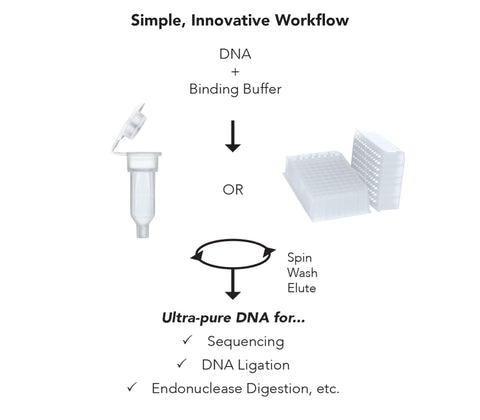

    The ZR-96 DNA Clean & Concentrator-5 Kit is a 96 well PCR purification kit that provides rapid, large-scale (96-well) purification and concentration of high-quality DNA from PCR samples, endonuclease digestions, or crude plasmid preparations. Simply add the specially formulated DNA Binding Buffer to your samples and transfer to the wells of the supplied Silicon-A Plate. There is no need for organic denaturants or chloroform. Instead, this 96 well PCR purification kit features Zymo-Spin plate technology to yield high-quality, purified DNA in just minutes.

    Documents

    Technical Specifications

    Detergent Tolerance ≤5% Triton X-100, ≤5% Tween-20, ≤5% Sarkosyl, ≤0.1% SDS
    Elution Volume ≥ 10 µl
    Equipment Centrifuge with microplate carriers with height tolerance of 60 mm (2.36 inches)
    Purity Highly purified DNA is eluted with water and is especially well suited for sequencing, ligation reactions, and restriction endonuclease digestions.
    Sample Source DNA from PCR, endonuclease digestions, DNA modification reactions, isotope/fluorescence labeling reactions, etc.
    Size Range 50 bp to 23 kb

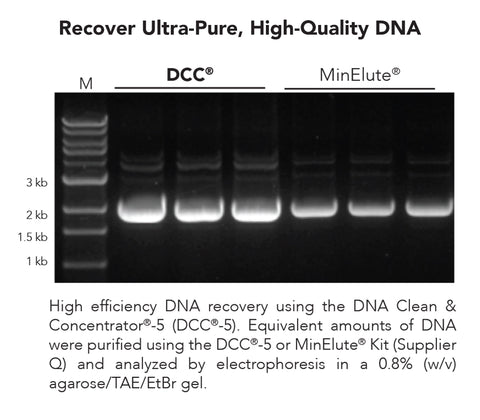

    Yield ≤ 5 µg total DNA can be recovered. For DNA 50 bp to 10 kb the recovery is 70-95% . For DNA 11 kb to 23 kb the recovery is 50-70%.

    Resources

    Cat # Name Size Price
    C2004 Zymo-Spin I-96 Plate 2 Plates €163,80
    C2003 Elution Plate 2 Plates €21,90
    C2002 Collection Plate 2 Plates €25,40
    D3004-4-16 DNA Elution Buffer 16 ml €20,80
    D3004-4-10 DNA Elution Buffer 10 ml €16,20
    D4003-2-24 DNA Wash Buffer (Concentrate) 24 ml €38,10
    D4003-2-48 DNA Wash Buffer (Concentrate) 48 ml €69,30
    D4004-1-L DNA Binding Buffer 100 ml €65,80
